ANALOG HD CAMERA
DOME CAMERA
HD Turbo IR Dome
SPECIFICATION
- Image Sensor : 1/3” Progressive Scan CMOS
- Effective Pixels : 1280(H)×720(V)
- Min. Illumination : 0.1 Lux @ (F1.2, AGC ON) 0 Lux with IR
- Lens : 3.6 mm Angle of view: 76.88° (3.6 mm)
- Adjustment Range : Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
- Day& Night : IR cut filter with auto switch
- Video Frame Rate : 720p @ 25fps / 720p @ 30fps
HD Turbo EXIR Dome
SPECIFICATION
- Image Sensor : 1MP CMOS
- Effective Pixels : 1296(H)×732(V)
- Min. Illumination : 0.1 Lux @ (F1.2, AGC ON)
- Lens : 3.6 mm Angle of view:70.9°
- Adjustment Range : Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
- Day& Night : IR cut filter with auto switch
- Video Frame Rate : 720p @ 25fps
- HD Video Output : 1 Analog HD Output
- S/N Ratio : More than 62dB
HD Turbo EXIR Dome Low Light
Up to 20m
SPECIFICATION
- HD720P Video Output
- Adopt HDTVI Technology
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- 20m IR distance
- IP66 weatherproof
- Low illumination
- Up the Coax (via coaxial cable)
HD Turbo EXIR Vari-focal Dome
SPECIFICATION
- HD720P Video Output
- Adopt HDTVI Technology
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- 2.8 - 12mm vari-focal lens
- Up to 50m IR distance
- Low illumination
- Up the Coax (via coaxial cable)
BULLET CAMERA
HD Turbo 720p Bullet
SPECIFICATION
- Image Sensor : 1MP CMOS
- Effective Pixels : 1296(H)×732(V)
- Min. Illumination : 0.1 Lux @ (F1.2, AGC ON)
- Lens : 3.6 mm Angle of view:70.9°
- Adjustment Range : Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
- Day& Night : IR cut filter with auto switch
- Video Frame Rate : 720p @ 25fps
- HD Video Output : 1 Analog HD Output
- S/N Ratio : More than 62dB

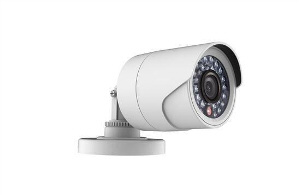

HD Turbo 1080p Bullet
Up to 20m
SPECIFICATION
- Image Sensor : 2MP CMOS
- Effective Pixels : 1930(H)×1088(V)
- Min. Illumination : 0.01 Lux @ (F1.2, AGC ON)
- Lens : 3.6 mm Angle of view:91.3°
- Adjustment Range : Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
- Day& Night : IR cut filter with auto switch
- Video Frame Rate : 1080p @ 25fps
- HD Video Output : 1 Analog HD Output
- S/N Ratio : More than 62dB
- DNR, BLC, Mirror, IP66

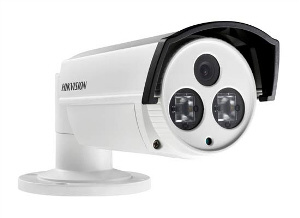

HD Turbo EXIR Bullet
SPECIFICATION
- HD720P Video Output
- Adopt HDTVI Technology
- True Day/Night
- DNR, Smart IR
- 40m/80m IR distance
- IP66 weatherproof

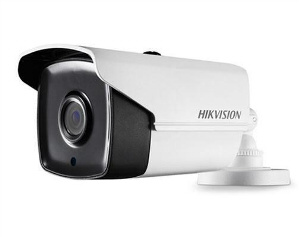

HD Turbo 1080p IT1 Bullet
SPECIFICATION
- Image Sensor : 2MP CMOS
- Effective Pixels : 1930(H)×1088(V)
- Min. Illumination : 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Lens : 3.6 mm Angle of view:91.3°
- Adjustment Range : Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
- Day& Night : IR cut filter with auto switch
- Video Frame Rate : 1080p @ 25fps
- HD Video Output : 1 Analog HD Output
- S/N Ratio : More than 62dB
- DNR, BLC, Mirror, IP66
HD Turbo WDR Bullet
HD Turbo EXIR Bullet Low Light
SPECIFICATION
- HD720P Video Output
- Adopt HDTVI Technology
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- 40m/80m IR distance
- IP66 weatherproof
- Low illumination
- Up the Coax (via coaxial cable)
PTZ Speed Dome CAMERA

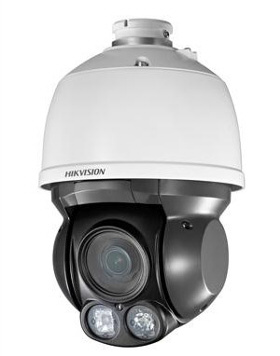

HD Turbo IR PTZ
.jpg)
SPECIFICATION
- 1.3MP / 2MP CMOS image sensor
- HD720P / 1080P Video Output
- Adopt HDTVI Technology
- 30X/23X optical zoom, 16X digital zoom
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- Privacy Masking
- 120m / 150m IR distance
- Low illumination
- Up the Coax function
